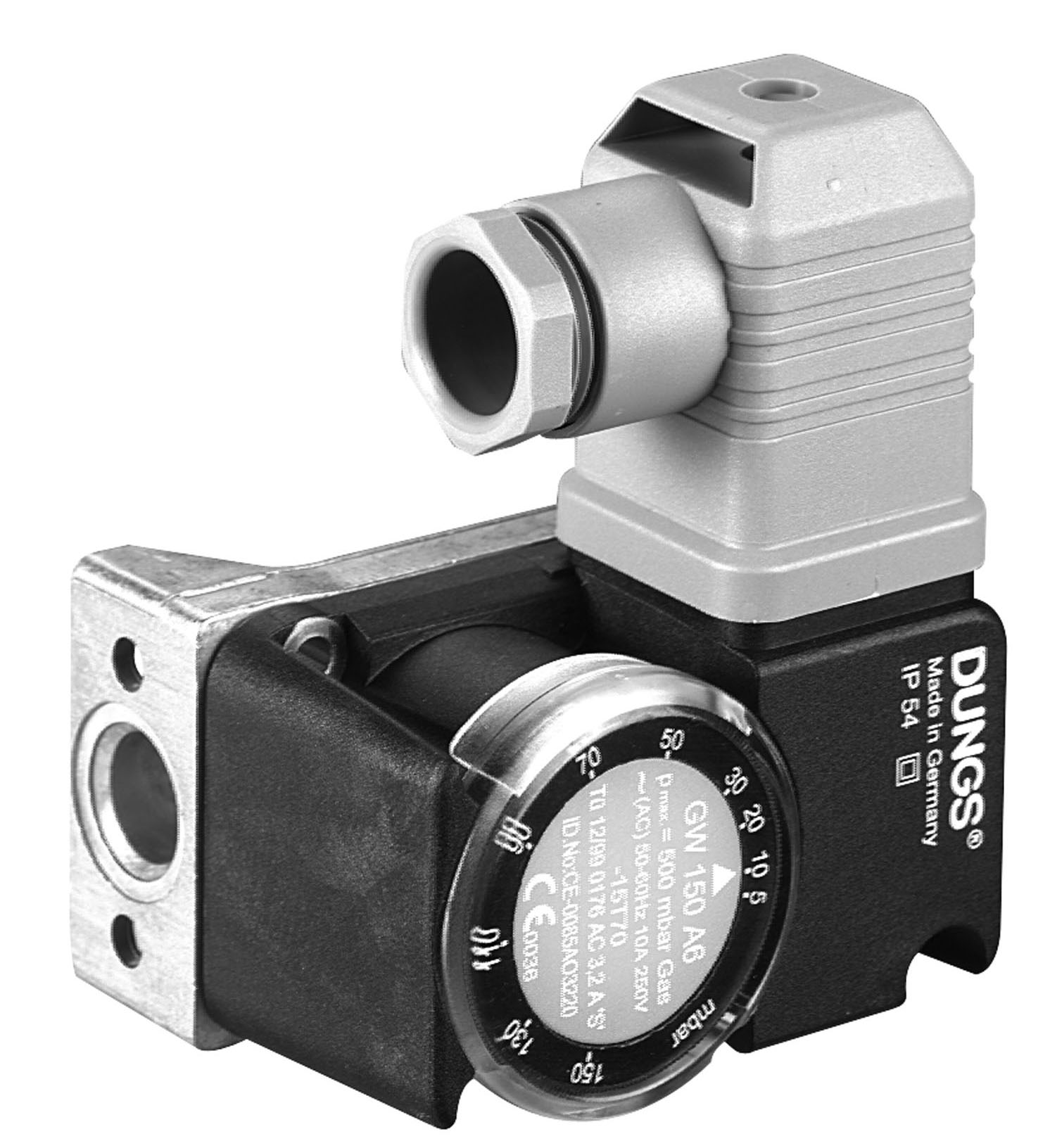

Dungs GWA6 Pressure Switches For Gases And Air

  • Max Operating Pressure: GW 3A6 - GW 150A6 500 mbar (50 kPa), GW 500A6 600 mbar (60 kPa)
  • Pressure Setting Range: GW 3A6 : 0.07 to 0.3 kPa, GW 10A6: 0.2 to 1 kPa, GW 50A6: 0.5 to 5 kPa, GW 150A6: 1 to 15 kPa, GW 500A6: 10 to 50 kPa
  • The pressure switch GW A6 and the double pressure switch GW A6 / GW A6 are adjustable compact pressure switches for firing systems.
  • They are suited for switching a circuit on, off or over if the actual pressure value changes compared to the setpoint.
  • The setpoint (switching point) is set on an adjusting wheel with scale. A test nipple is integrated in the metal housing as standard.
  • AGA Approval No. 6062
